In the past there have been questions and much miss information put out
on the choice of a 32/36 DGEV carb or the 38 DGAS
The Kits utilizing the 32/36 Progressives Weber are designed to
provide the market with an economical performance carburetor conversion
that while increasing Hp also improves drivability and fuel economy over
the stock carburetor. The K551 or any kit using the 32/36 progressive
carburetor is the optimum carburetor for use as a performance replacement
carburetor for a worn out or hard to maintain factory carb.

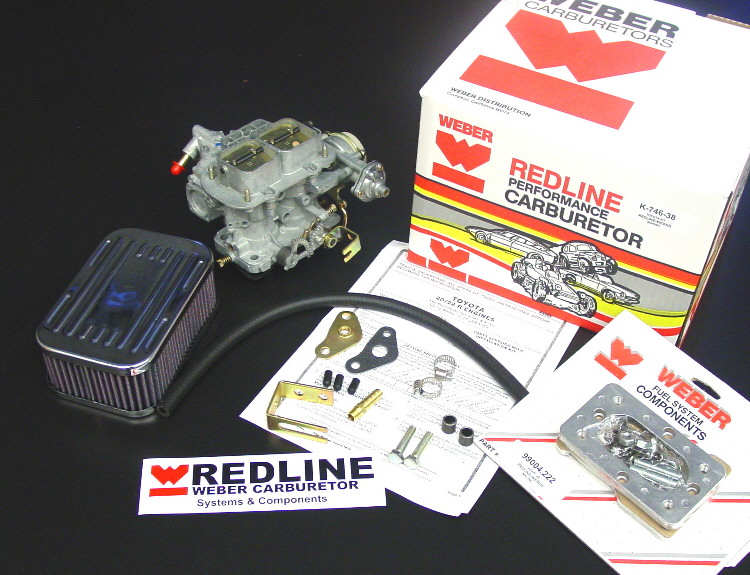

When purchased in kit form the Redline Weber kit with the 38mm DGAS
carb will perform on a stock unmodified engine without any problems. This
is not going to be an over carburetion situation.
provide considerably more initial torque and acceleration but the top end
performance will not be significantly improved over the 32/36 when used on
a stock motor.
The 38mm DGAS carb should be the only consideration if the engine
is in the future or currently going to have any level of additional engine
modification. Such as headers, free flowing exhaust, a cam, or rebuilt
engine. Usually these motors will be improved over stock with oversize
pistons and towing cam. The 38 will enhance the improvements of any of
these items. The 6 cylinder engine applications are particularly enhanced
by this application. In-fact on ALL JEEP and LAND CRUISER applications with
any upgrades this is a mandatory choice. Other wise the progressive will
require re-calibration to work properly.
When using a 32/36 in the same above situations it will require
additional calibration and rejetting to attain the desired performance and
standard fuel economy. There is a jet kit available for just this reason.
The jetting is required due to the performance enhancements of the
additional items. Although the 32/36 does out perform the original, to
receive the full benefit of your investment the 32/36 will require helpful
re-calibration. The 38 on the other hand is the optimum choice and has a
larger fuel delivery system and the calibration to handle the broader
range of improved performance and improves substantially your other
While the 32/36 progressive carb will improve your fuel economy on
a stock motor over the OEM carb. The 38 Synchronous carb will not get less
fuel economy than the OEM carb.
The 32/36 DGV progressive carburetor as
used in any Redline Weber kit is pre-calibrated and set to run on most
normal standard and stock engines and provide a performance and fuel
economy improvement. If that engine has been upgraded or improved with
other performance items there will be a need to recalibrate or rejet the
carburetor in some situations. There is a performance jet kit just for the
Jeep applications Pt No. 701-DGV.
The 38 DGAS synchronous carburetor when supplied in kit form from Redline Weber is also pre-calibrated for use on stock or slightly modified motors and will not be over carbureted. It also provides the best starting point for engines that are ultimately going to be upgraded with additional performance Items with performance over fuel economy being the ultimate goal.
38 DGES Outlaw
Progressive Series carburetor
22680 005 Manual choke
22680 051B Water choke
22680 033B Electric choke
Synchronous Series carburetor
18930 032 Water choke
18930 020 Electric choke
